Selecting a FAKRA connector supplier is a critical decision that impacts the signal integrity and mechanical reliability of modern vehicle systems. As automotive architectures shift toward ADAS, telematics, and high-speed infotainment, the "standard" FAKRA interface requires more than just a physical fit. It demands a partner capable of navigating rigorous RF performance standards and the zero-defect culture of the automotive supply chain.
In the high-stakes environment of Tier 1 and Tier 2 procurement, a failure in a $0.50 connector can lead to million-dollar recalls. This guide outlines the technical and commercial benchmarks necessary to vet a professional FAKRA connector manufacturer.
The primary role of a FAKRA connector is to maintain a stable 50-ohm impedance across varying frequencies, typically up to 4 GHz or 6 GHz for newer generations. A qualified supplier must demonstrate mastery over the RF signal chain.
When evaluating a supplier's technical documentation, prioritize these metrics:
VSWR (Voltage Standing Wave Ratio): Look for values typically≤1.40 up to 2 GHz and≤1.50 up to 4 GHz.
Insertion Loss: Efficient power transfer is vital; ensure the supplier provides frequency-specific loss data.
Isolation/Cross-talk: Critical for multi-port FAKRA housings used in complex telematics units.
Beyond the electrical specs, the mechanical interface must comply with ISO 20860-1 and USCAR-18. These standards ensure that the connector’s "click" isn't just audible, but backed by specific retention forces (typically>110N) to withstand the high-vibration environment of a chassis or engine bay.
In the automotive industry, a supplier’s quality management system is as important as the product itself. You are not just buying a component; you are buying a process.
Any serious FAKRA connector supplier must hold an active IATF 16949 certification. This goes beyond ISO 9001 by mandating a process-oriented quality management system that focuses on continuous improvement, defect prevention, and the reduction of variation and waste in the supply chain.
Ask potential suppliers about their APQP and PPAP (Production Part Approval Process) capabilities. A reliable partner will provide:

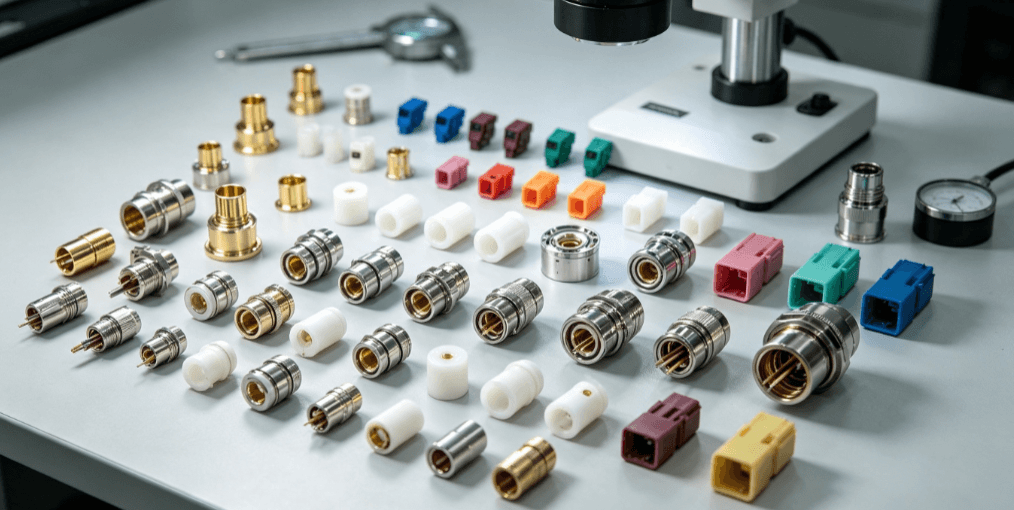

The longevity of a FAKRA connection depends on material science. High-performance automotive environments involve extreme temperature swings and chemical exposure.
| Component | Industry Standard Material | Why it Matters |
|---|---|---|
| Center Contact | Brass or Phosphor Bronze (Gold plated) | Ensures low contact resistance and prevents oxidation. |
| Insulator | PTFE or PBT | Maintains dielectric constant and withstands high soldering temperatures. |
| Outer Shell | Zinc Alloy (Nickel plated) or Plastic | Provides EMI shielding and structural rigidity. |
| Housing | PA66 + GF (Glass Fiber reinforced) | Prevents warping and ensures the locking tab doesn't snap. |
Suppliers like SoarCable utilize these high-grade materials to ensure that their connectors maintain mechanical integrity from -40°C to +105°C. When reviewing a supplier’s catalog, verify that their plastic housings meet the standard color-coding (A-Z) and mechanical keying requirements to prevent mismating during high-speed vehicle assembly.

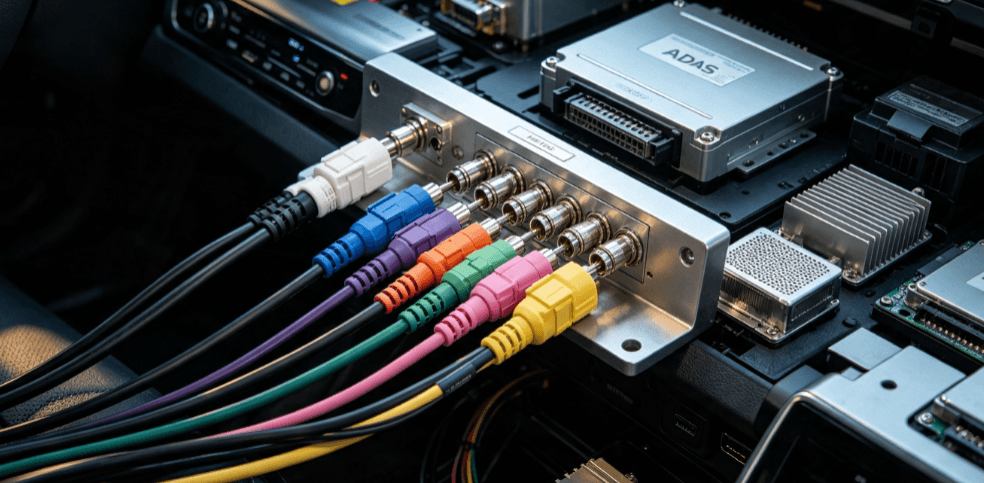

Rarely is a FAKRA connector used in isolation. Most automotive projects require complex cable assemblies. A supplier’s value increases significantly if they can handle the integration of the connector with the coaxial cable (such as RG-174, RG-58, or RTK-031).
Key questions for your supplier:
In the current global climate, "Price per unit" is often secondary to "Security of supply." A FAKRA connector supplier must demonstrate a robust logistics framework.
Navigating the complexities of FAKRA selection is simplified when working with a manufacturer that understands the nuances of RF connectivity. SoarCable provides a comprehensive range of FAKRA connectors and cable assemblies tailored for the automotive sector. Their offerings emphasize precision keying and color-coding, ensuring seamless integration into telematics, infotainment, and ADAS modules. By focusing on both the connector interface and the high-quality coaxial assembly, they provide a single point of accountability for signal performance.
FAKRA connectors use a system of mechanical keying and color-coding (Coding A through Z). This is designed to prevent "mismating" on the assembly line. For example, Coding C (Blue) is typically for GPS, while Coding I (Beige) is for Bluetooth. A supplier must offer the full spectrum of codings to support complex vehicle architectures.
Standard FAKRA (Version I and II) typically tops out at 4-6 GHz. While this covers some 5G Sub-6GHz bands, many 5G applications and high-resolution cameras are moving toward FAKRA-Mini (High-Speed FAKRA) or HSD (High-Speed Data) connectors, which support data rates up to 20 Gbps and higher frequencies.
For standard automotive connectors, MOQs can range from 100 to 500 pieces depending on the customization (e.g., specific cable lengths or specialized heat-shrink labeling). Manufacturers like SoarCable often provide flexibility for prototyping phases before scaling to full production.
Request a PPAP Level 3 report. This is the industry standard that includes material test results, initial process studies, and a warrant (PSW) confirming the part meets all customer specifications and automotive regulations.
