For procurement, engineers, and quality teams planning new vehicle platforms or service programs, understanding automotive wire harness types is foundational. This article explains the roles and sourcing considerations for engine, body, door, and chassis harnesses, with practical notes for RFQs and supplier qualification. Where standards or engineering tradeoffs are mentioned, citations are provided for general guidance.
Different automotive wire harness types encounter distinct environments, routing paths, and electrical duties. Grouping by location and function helps teams set realistic expectations for durability, EMC behavior, serviceability, and assembly methods. It also clarifies which data must be confirmed during RFQ to prevent rework or late changes. As a baseline for workmanship and acceptance criteria, buyers and suppliers typically align to IPC/WHMA guidance; the standard provides requirements for cable and wire harness assemblies, and the product class must be agreed between parties (see ANSI summary ).
The engine harness routes signals and power for sensors, actuators, ignition, fuel, and emissions subsystems. It typically spans from the engine bay to the ECU/PCM area, navigating heat, vibration, fluids, and tight packaging. Key planning points include branch breakouts near hot zones, strain relief at rigid-to-flex transitions, and connector positioning for service access. Because engine compartments are electrically noisy, shielding and grounding strategies are often evaluated early along with termination approach and ground points—decisions that depend on EMI exposure, use conditions, and termination/grounding practices (see ODU guidance ). Order-specific items such as pinout, conductor materials, temperature class, and test evidence are RFQ confirmation required.
The body harness is the backbone for interior lighting, HVAC controls, infotainment, safety sensors, and network backbones. Its long routing and numerous take-outs demand careful branch management, labeling, and secure fastening to avoid buzz, squeak, and rattle. Procurement should expect detailed drawing control and change management due to the number of stakeholders it touches (interior, EE, body-in-white). Network segments and diagnostic breakouts may be included as specified by the platform; verification of any topology, splice schedules, and inline module interfaces is RFQ confirmation required.
Door harnesses connect power windows, locks, mirrors, side airbags, puddle lamps, and indicators. They repeatedly flex through the door-to-body grommet, so bend radius, strain relief, and abrasion mitigation are central. Seal integrity at the grommet and connectors helps preserve performance. Because moving assemblies can be damaged during service, clearly marked retainers and robust clip strategies are beneficial. Exact flex-life requirements, grommet geometry, and environmental testing details are RFQ confirmation required.
The chassis harness routes along the frame or underbody to systems such as ABS/ESC wheel speed pickups, ride-height or load sensors, and transmission or driveline interfaces. The environment can include moisture, road debris, and chemicals, so abrasion protection, sealing strategies, and clip material choices receive special attention. Grounding points and shield terminations must be coordinated with the vehicle’s bonding strategy if EMC-sensitive circuits are present (see for general shielding considerations). Specific mounting hardware, bracketry, and protective sleeve specifications are RFQ confirmation required.
| Harness type | Typical functions | Environment & routing | Interfaces that may appear | Sourcing focus |
|---|---|---|---|---|
| Engine | Sensors, actuators, ECU connections | Heat, vibration, fluids; tight packaging | Examples seen in supplier collection: diagnostic connectors (e.g., OBD‑II), multi-interface breakouts (reference only) | Shielding/grounding approach; heat management; service access |
| Body | Lighting, HVAC, infotainment, safety sensors | Long routes with many branches | Network/diagnostic points; splice schedules (RFQ confirmation required) | Labeling, change control, branch management |
| Door | Windows, locks, mirrors, side airbags | Repeated flex through grommet | Sealed connectors, inline junctions (RFQ confirmation required) | Flex-life, abrasion mitigation, sealing |
| Chassis | ABS/ESC, underbody sensors, drivetrain | Moisture, debris, chemicals; exposed paths | Durable sealed interfaces; tie-downs (RFQ confirmation required) | Protection sleeves, clips, routing brackets |
Across all harness types, EMI/EMC is a cross-functional topic touching component selection, conductor construction, braid/foil specification, and how shields are terminated. As summarized by ODU, shielding approach depends on the EMI environment, use conditions, and termination/grounding considerations; even an excellent shield can underperform if termination or bonding is mishandled . For procurement, the practical implication is to align on shield strategy with engineering before sourcing, and indicate in the RFQ whether shields are to be single- or multi-point grounded, pigtail vs. 360° termination, and which end(s) carry drain wires—each item RFQ confirmation required.
To streamline supplier alignment, teams often reference IPC/WHMA A‑620 acceptance criteria for cables and wire harness assemblies. Per the ANSI article, the standard defines requirements and acceptance criteria, and critically, the applicable product class must be agreed by buyer and supplier . This mutual agreement supports consistent inspection outcomes, documentation traceability, and a clear basis for concession or deviation handling. Any claim of compliance, test methods, or inspection levels for a specific order is RFQ confirmation required.
Sourcing note: examples from the SOAR Automotive Wire Harness Collection

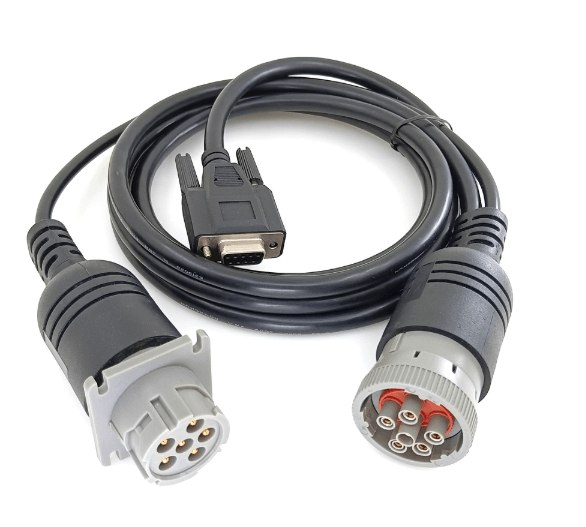

The SOAR Automotive Wire Harness Collection states use in automotive applications such as diagnostic, engine, and control cable applications. The collection displays examples including J1708/J1939, DB9, DB15, OBD‑II, DT, and multi‑interface diagnostic harnesses. These images and descriptions are illustrative for category understanding only; exact vehicle fitment, pinout, material, quality level, production quantity, lead time, and test evidence are RFQ confirmation required.
For organizational context, see the SOAR company profile and automotive‑cable scope. Use this alongside your internal AVL and PPAP/APQP processes as applicable to your organization’s quality system. No compatibility or performance is implied for any particular order without RFQ confirmation.
Supplier‑qualification evidence to request:
Order‑specific data to include (RFQ confirmation required):
Non‑coercive next step: If you are benchmarking options, browse the SOAR Automotive Wire Harness Collection to see category examples, then share your drawing package and requirements for RFQ confirmation.
The engine harness concentrates on powertrain sensing and actuation in a hot, vibration‑rich space near the engine/ECU. The body harness spans much of the vehicle interior, distributing power/signals to comfort, infotainment, and safety subsystems with many branches. Each has different routing, environmental, and EMC considerations; order‑specific details are RFQ confirmation required.
Shielding is considered when circuits are susceptible to or generate EMI, or when routing passes noisy zones. As ODU notes, decisions depend on the EMI environment, use conditions, and how shields are terminated/grounded . The specific shield type and termination scheme are RFQ confirmation required.
Provide a controlled drawing, netlist, and connector cavity maps with your RFQ. The supplier will return a quoted configuration and build documentation for approval. Exact vehicle fitment, pinout, materials, quality level, production quantity, lead time, and any test evidence are RFQ confirmation required.
No. The examples in the SOAR Automotive Wire Harness Collection illustrate category scope (e.g., diagnostic, engine, and control cable applications and connectors such as J1708/J1939, DB9, DB15, OBD‑II, DT). They do not establish compatibility or performance for a particular order without RFQ confirmation.
