Choosing between a J1939 connector and an OBD2 connector depends less on the connector's physical appearance and more on the vehicle network, diagnostic equipment, and application.
J1939 is commonly associated with heavy-duty and off-highway vehicle networks, while OBD2 uses a standardized diagnostic connection for road vehicles and external diagnostic equipment. The two should not be treated as interchangeable simply because both are used for vehicle diagnostics.
The key difference is that SAE J1939 and OBD2 belong to different diagnostic and communication contexts.
SAE J1939/13 specifies off-board diagnostic connectors for vehicles and equipment using SAE J1939 communication links. Its scope covers applications including heavy trucks, construction equipment, agricultural machinery, and other off-highway equipment.
OBD2, meanwhile, refers to standardized on-board diagnostics. The physical diagnostic connector is specified by SAE J1962, which defines the vehicle-side and external test-equipment connectors and their electrical requirements.
| Factor | J1939 | OBD2 |
|---|---|---|
| Typical connector | 9-pin diagnostic connector | 16-pin diagnostic connector |
| Main standard | SAE J1939/13 | SAE J1962 |
| Common application | Heavy-duty and off-highway equipment | Road vehicles and OBD-equipped vehicles |
| Diagnostic environment | J1939 vehicle networks | Standardized OBD access |
| Typical use | Trucks, buses, construction and agricultural equipment | Passenger vehicles and applicable light/medium-duty vehicles |
| Adapter requirement | May require J1939-specific interface | Usually uses an OBD2/J1962 interface |
| Main selection factor | Vehicle network and connector configuration | Vehicle OBD interface and diagnostic protocol |
The pin count is useful for identification, but pin count alone does not establish electrical or protocol compatibility.
A connector is only the physical interface between diagnostic equipment and the vehicle.
The diagnostic system still needs the appropriate electrical connections, communication protocol, and software support.
SAE J1939/13 defines connectors used for off-board access to J1939 communication links. The standard addresses different physical media used within J1939 networks, including shielded and unshielded twisted-pair configurations.

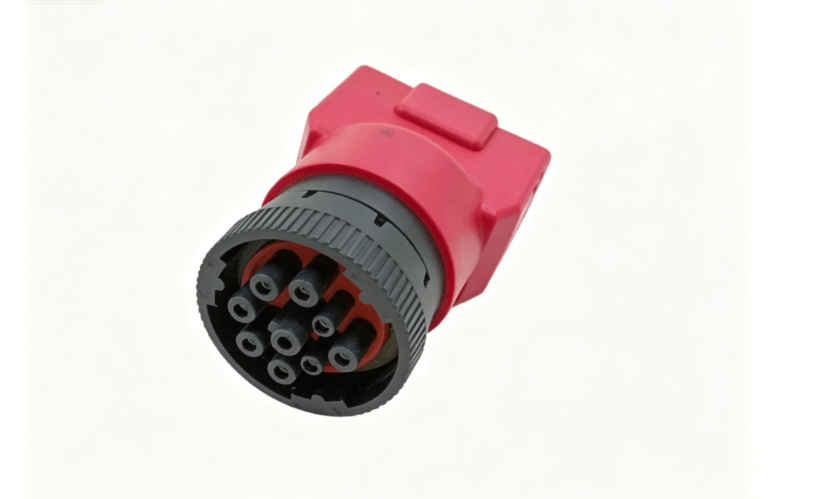

A common J1939 diagnostic configuration uses a 9-pin connector.
This makes the connector particularly relevant when working with:
However, the exact connector configuration should always be verified against the vehicle and diagnostic-tool requirements.

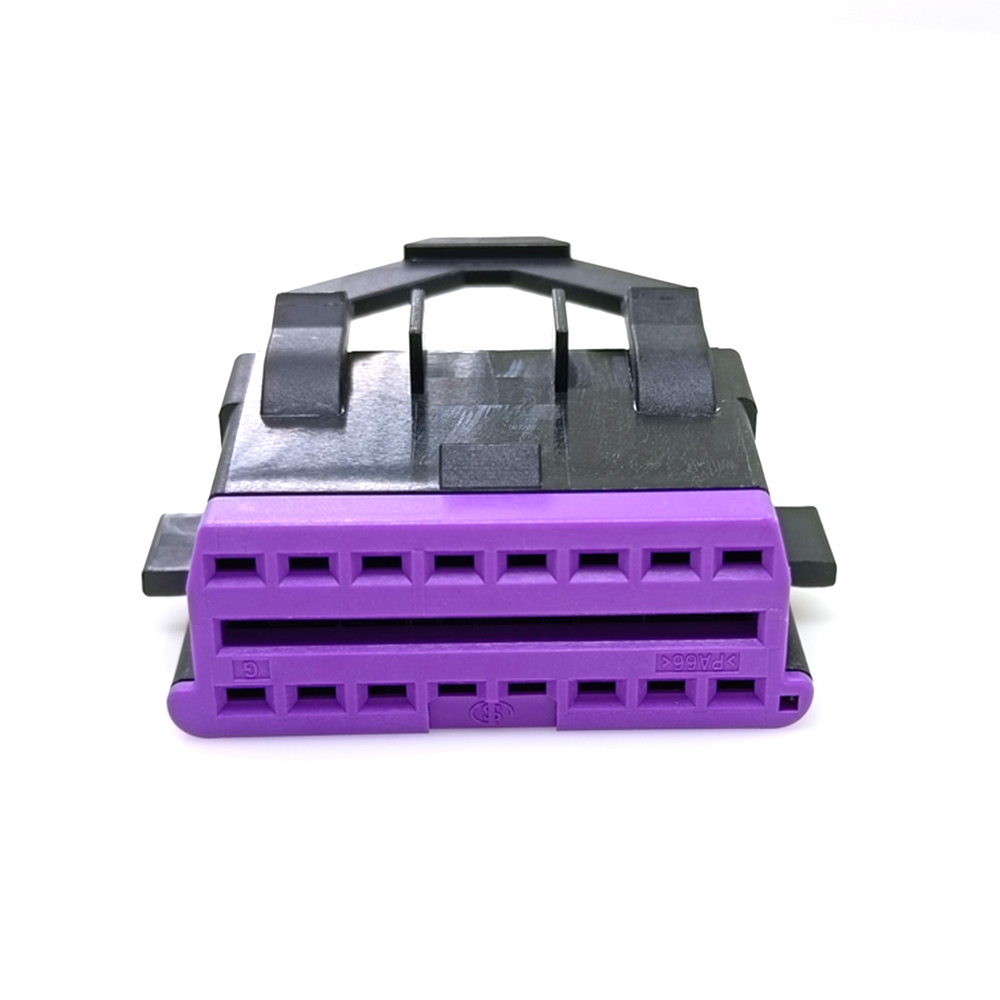

OBD2 commonly uses the 16-pin J1962 diagnostic connector.
SAE J1962 defines the physical connection and electrical requirements for the vehicle connector and external test-equipment connector. ISO 15031-3:2023 also references SAE J1962 and specifies requirements for physical connection and pin usage for standardized OBD access.
That means a 16-pin connector can provide the physical interface, but the diagnostic tool still needs to support the relevant vehicle communication and diagnostic functions.
There is no universal winner in the J1939 vs OBD2 comparison.
The correct connector is determined by the vehicle architecture.
For a vehicle equipped with a standard OBD2 diagnostic interface, a 16-pin J1962 connector is normally the appropriate physical interface.
This is the environment where OBD2 diagnostic cables and scan-tool connectors are most commonly encountered.
Heavy-duty vehicles may use SAE J1939 networks and corresponding diagnostic connectors.
If the diagnostic equipment is designed to communicate with a J1939 network, a J1939 diagnostic connector may be required.
This is especially relevant when the application involves engine, transmission, vehicle control, or other electronic systems connected through a J1939 network.
J1939 becomes particularly relevant in off-highway applications.
SAE identifies construction equipment, agricultural machinery, heavy trucks, and other off-road applications within the J1939 ecosystem.
For these applications, selecting an OBD2 connector simply because it is widely available can lead to an incompatible diagnostic interface.
A more complicated case occurs when one diagnostic tool needs to support both J1939 and OBD2 vehicles.
Here, an adapter cable can bridge different physical connector interfaces, provided that the wiring, electrical characteristics, communication protocol, and diagnostic tool are designed to work together.
A physical adapter does not automatically convert one vehicle communication protocol into another.
If the requirement is primarily physical connector selection, start with the vehicle-side interface.
Use a J1939 9-pin connector when:
Use an OBD2 16-pin connector when:
A J1939-to-OBD2 adapter can be useful when the vehicle-side connector and diagnostic-equipment-side connector are different.
For example, a diagnostic tool may use an OBD2-style 16-pin interface while the target vehicle provides a J1939 9-pin diagnostic connection.
In this situation, the cable may provide a J1939 9-pin connection on one side and an OBD-II 16-pin connection on the other.
SOAR offers a custom SAE J1939 9-pin to OBD-II 16-pin diagnostic cable designed around this type of interface combination. The listed configuration uses a SAE J1939 9-pin male connector and an OBD-II 16-pin female connector.
For an adapter project, however, the important question is not simply whether both ends physically mate.
The wiring must match the intended diagnostic application.
A useful engineering review should therefore confirm:
This is particularly important for OEM diagnostic equipment, because an incorrectly wired adapter can be physically compatible while still being electrically unsuitable.
For equipment that requires a standard OBD2 interface, the 16-pin J1962 connector is the relevant physical standard.
SOAR's custom 16-pin OBDII male plug is listed as an OBD-II 16-pin male connector for automotive diagnostic applications. The product page also identifies OEM/ODM customization as an available service.
This type of connector can be considered when developing:
For production projects, connector selection should also consider contact material, housing design, cable construction, retention, environmental exposure, and the required testing process.
The connector should be evaluated as part of the complete cable assembly rather than as an isolated component.
The most common mistake in diagnostic cable selection is focusing on the connector shell before confirming the electrical interface.
A better selection sequence is:
Vehicle → diagnostic protocol → pinout → connector → cable → equipment interface
Determine whether the vehicle or equipment uses J1939, OBD-related communication, or another manufacturer-specific diagnostic architecture.
Check the vehicle-side connector carefully.
A similar-looking connector does not necessarily have the same pin assignment or electrical function.
For custom diagnostic cables, document both interfaces.
For example:
J1939 9-pin vehicle side → cable assembly → OBD2 16-pin equipment side
The required gender and pin configuration should be specified before manufacturing.
The diagnostic tool must support the communication system used by the target vehicle.
A connector adapter cannot by itself make an incompatible diagnostic tool communicate with a vehicle.
For commercial diagnostic equipment, engineers should also review:
These factors become increasingly important when the cable is intended for repeated field use.
For OEM or ODM diagnostic cable development, the connector specification should be established before production begins.
SOAR's product information indicates support for OEM/ODM customized automotive wiring harnesses and connectors, with manufacturing facilities in China and Thailand. Its J1939-to-OBD2 product is listed with a J1939 9-pin male and OBD-II 16-pin female configuration, while its OBD2 connector product uses a 16-pin male connector.
The company states that its manufacturing and quality processes operate under an IATF 16949 quality system and that samples can be approved before mass production. Its published production information gives sample lead times of 2–20 days and mass-production lead times of 1–6 weeks, depending on quantities and customization requirements. These are supplier-stated ranges, so actual timing should be confirmed against the specific project.
For a custom diagnostic cable, a practical RFQ package should include the connector drawing, pinout, cable specification, connector gender, cable length, expected quantity, and any environmental or testing requirements.
No. J1939 and OBD2 represent different automotive communication and diagnostic environments. J1939 is widely used in heavy-duty and off-highway vehicle networks, while OBD uses a standardized diagnostic connection defined by SAE J1962.
A 9-pin connector is a common J1939 diagnostic configuration, but connector selection should be based on the applicable J1939 specification and vehicle implementation rather than pin count alone. SAE J1939/13 defines off-board diagnostic connectors for J1939 communication links.
The standardized OBD diagnostic connection covered by SAE J1962 uses a 16-pin connector configuration. ISO 15031-3:2023 also specifies physical connection and associated pin usage for standardized OBD access.
It can be possible with a properly designed adapter cable, but the physical connection alone is not sufficient. The wiring, electrical interface, communication protocol, and diagnostic software must all support the intended application.
Not automatically. If the truck provides a J1939 diagnostic interface, the cable must provide the appropriate physical and electrical connection for that interface.
Provide the vehicle connector type, equipment connector type, connector gender, pinout, cable length, cable construction, expected quantity, and any environmental or testing requirements. For OEM projects, drawings and sample connectors can reduce the risk of an incorrect configuration.
