In the rigorous landscape of modern industrial automation, the reliability of a manufacturing system is only as strong as its most vulnerable connection. Water, oil, coolant, and dust are constant threats that can penetrate standard electrical interfaces, leading to short circuits, signal degradation, and catastrophic equipment failure.

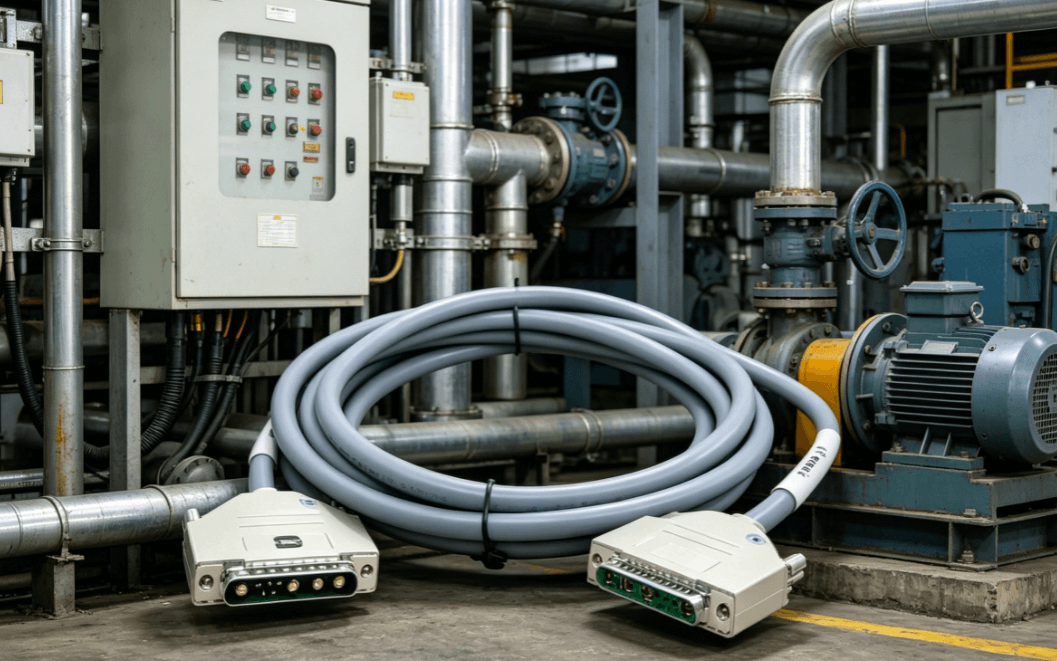

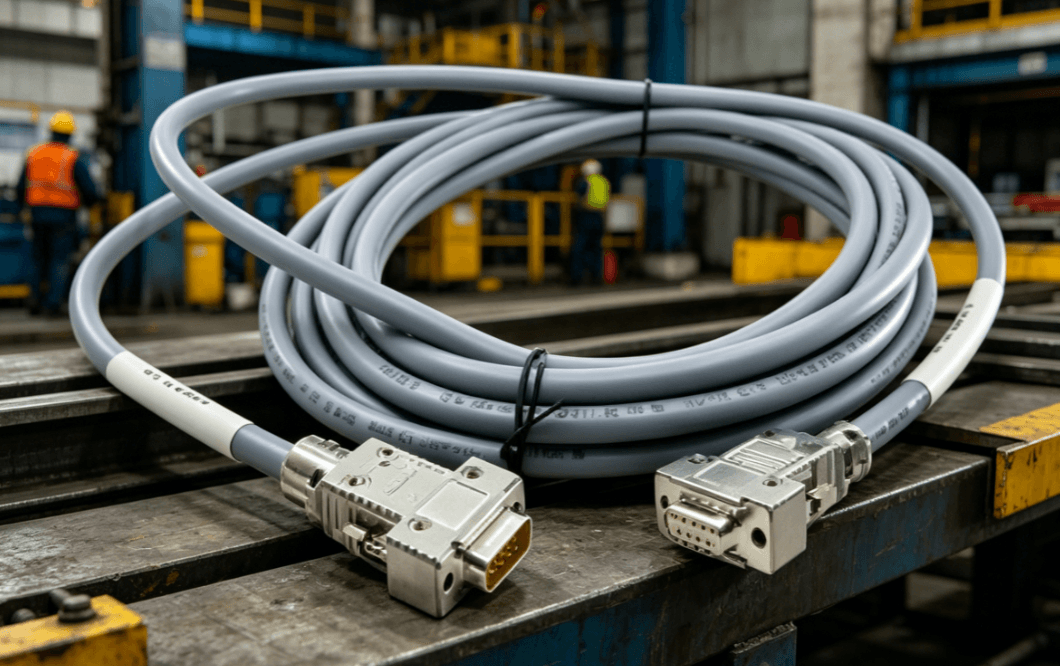

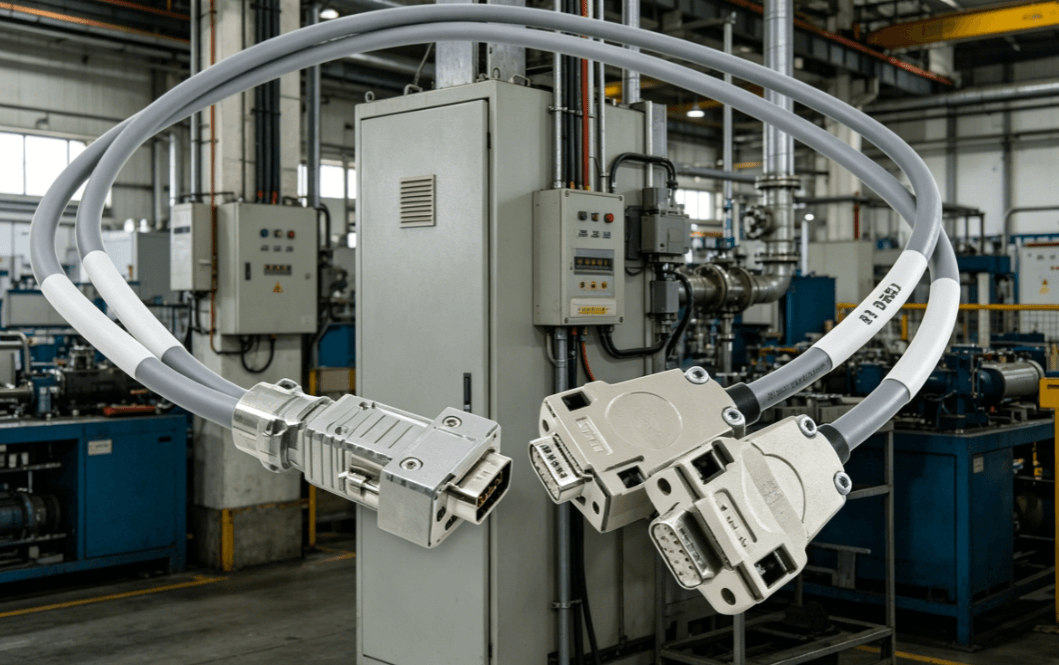

An industrial waterproof cable assembly serves as the critical bridge between control units and field devices in environments where exposure to liquids is inevitable. For OEM project managers and system integrators, selecting these components is a high-stakes decision that balances material science, mechanical engineering, and cost-efficiency. This guide explores the technical depth required to source and implement high-performance connectivity solutions for the factory floor.
The primary metric for any industrial waterproof cable assembly is its Ingress Protection (IP) rating. However, simply choosing the highest number is not always the most cost-effective or technically sound strategy. Engineering teams must match the rating to the specific environmental stress of the application.
For most standard automation tasks, IP67 is the baseline. It ensures that the cable assembly can withstand temporary immersion and is completely dust-tight. In a CNC machining center, where splashes of coolant are frequent but the cable is not constantly submerged, IP67 provides a reliable seal. However, the chemical composition of the coolant must be considered, as "waterproof" does not always mean "chemical-proof."
In food processing and pharmaceutical manufacturing, equipment undergoes high-pressure steam cleaning. Standard IP67 or even IP68 connectors often fail under the thermal shock and kinetic energy of a 100-bar pressure washer. The IP69K rating is specifically designed for these scenarios. An industrial waterproof cable assembly with this rating uses reinforced gaskets and high-temperature resistant overmolding to maintain a hermetic seal against 80°C water jets.
The outer jacket of the assembly is the primary barrier against environmental degradation. Choosing between thermoplastic options requires an analysis of the mechanical and chemical stresses the cable will encounter during its lifecycle.
| Feature | PVC (Polyvinyl Chloride) | PUR (Polyurethane) | Teflon (PTFE/FEP) |
|---|---|---|---|
| Water Resistance | High | High | Exceptional |
| Oil/Chemical Resistance | Moderate | Excellent | Extreme |
| Flexibility | Moderate | High (Drag Chain Rated) | Low to Moderate |
| Cost | Low (Economy) | Moderate (Industrial) | High (Specialized) |
| Common Use | Static installations | Robotics, CNC Machines | Chemical Processing |
PUR is often the preferred material for high-end industrial waterproof cable assemblies used in motion control. Its molecular structure allows for high abrasion resistance and "memory" during repetitive flexing. In robotic cells where moisture is present, PUR maintains its integrity without becoming brittle, unlike standard PVC which may crack under constant stress, allowing moisture to wick into the internal conductors.
While PUR is excellent for motion, PVC remains a cost-effective solution for static cable trays where the environment is controlled. Conversely, in extreme chemical processing plants—such as battery manufacturing or acid etching—Teflon-based jackets are required. These materials offer nearly universal chemical inertness, ensuring the industrial waterproof cable assembly does not degrade when exposed to aggressive solvents or high-concentration acids.
For many OEM applications, a "standard" cable is an impossibility. Customization is required to fit specific spatial constraints and electrical requirements.
Overmolding is a critical manufacturing step where the connector-to-cable junction is encapsulated in a secondary layer of polymer. This process provides three major benefits for an industrial waterproof cable assembly:
Modern manufacturing floors are electrically noisy. VFDs, motors, and wireless transmitters can interfere with sensitive sensor data. High-quality waterproof assemblies incorporate advanced shielding techniques:
Transitioning from a design prototype to mass production requires a rigorous quality assurance (QA) framework. For transactional buyers, verifying a supplier's testing capabilities is as important as the unit price.
A robust industrial waterproof cable assembly must undergo a battery of tests before leaving the factory:
Procurement managers must manage the balance between inventory and lead times.
Selecting an industrial waterproof cable assembly is a strategic decision that directly impacts machine uptime and maintenance costs. By prioritizing IP ratings, material science, and custom overmolding, OEM manufacturers can ensure their equipment performs reliably in the harshest conditions. For those seeking high-reliability components, Soarcable Industrial Cables offer the technical precision and customization required for modern manufacturing environments.
Water-resistant cables can withstand light spray or high humidity but will eventually fail if submerged or hit with high-pressure jets. A true industrial waterproof cable assembly is rated for IP67 or higher, meaning it is hermetically sealed against total immersion or specialized washdown conditions.
M12 connectors are the industry standard for most sensors and actuators, offering more pin configurations and higher current capacity. M8 connectors are used where space is at a premium, such as on small robotic grippers or compact manifolds. Both can achieve high IP ratings when properly overmolded.
Field-attachable connectors are available for emergency repairs, but they rarely match the reliability or IP rating of a factory-overmolded assembly. For critical manufacturing equipment, it is always recommended to replace the entire assembly with a factory-sealed unit to prevent future moisture ingress.
Yes. Extreme heat or cold causes materials to expand and contract at different rates. If a cable assembly is not designed for thermal cycling, the seals between the metal connector and plastic overmold can delaminate. Always specify the operating temperature range during the RFQ process.
If the assembly is used in an outdoor manufacturing setting or near UV-curing equipment, the jacket material must be UV-stabilized. Without this, the jacket will crack (crazing), allowing water to penetrate the assembly regardless of the connector's IP rating.
UL 2238 Standard for Cable Assemblies in Industrial Control
ISO 20653 Road Vehicles Degrees of Protection for Equipment
IPC-A-620 Requirements for Cable and Wire Harness Assemblies
