SOAR Custom Vehicle Wiring Harness: Key Selection Factors

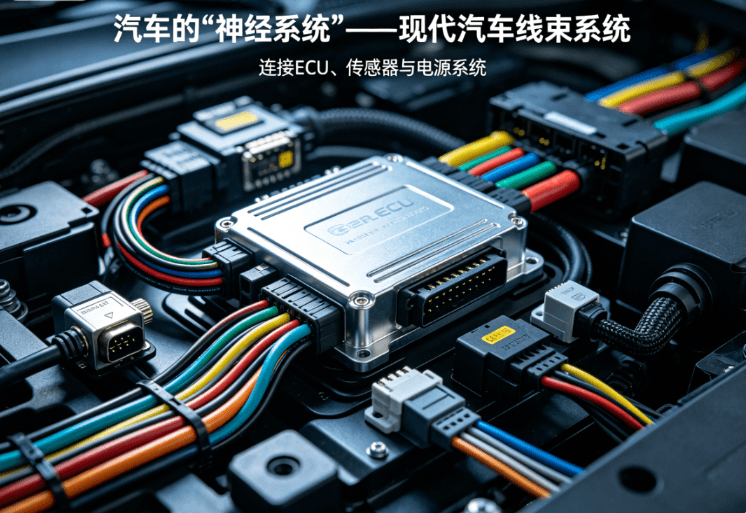

The modern vehicle is no longer just a mechanical machine; it is now a complex, data-driven ecosystem where electrical and communication systems are tightly integrated. At the heart of this evolution lies the automotive wiring harness—the “nervous system” that enables communication between ECUs, sensors, and vehicle power distribution systems. When sourcing a SOAR custom vehicle wiring harness, engineers and procurement managers must look beyond simple connectivity.

The choice between a passenger vehicle harness and a heavy-duty commercial harness involves distinct trade-offs in thermal resistance, mechanical durability, and signal integrity. Understanding these nuances is critical for ensuring long-term vehicle reliability and minimizing field failures.

The Role of a SOAR Custom Vehicle Wiring Harness in Modern Platforms

An automotive wiring harness is an integrated assembly of cables, terminals, and connectors designed to transmit both electrical power and data signals within a vehicle. Unlike off-the-shelf solutions, custom harnesses are engineered to fit specific spatial constraints and environmental conditions.

For passenger vehicles, the focus often leans toward weight reduction and high-speed data transmission for Infotainment and ADAS (Advanced Driver Assistance Systems). In contrast, commercial vehicle harnesses—designed for trucks, buses, and construction equipment—must prioritize high-voltage capacity and resistance to extreme vibration and chemical exposure.

The engineering of a SOAR custom vehicle wiring harness ensures that every gauge of wire and every connector housing is optimized for the specific load profile of the target application.

Commercial vs. Passenger Harnesses: Key Performance Differences

Selecting the right automotive wiring harness architecture depends heavily on the vehicle’s operational environment and electrical load requirements. Below is a comparison of the technical requirements typically encountered during the specification phase.

Commercial automotive wiring harnesses often utilize thicker insulation materials, such as Cross-linked Polyethylene (XLPE), to withstand higher temperatures in engine compartments. Passenger vehicles may utilize ultra-thin wall PVC to shave grams off the total vehicle weight, aiding in fuel efficiency and battery range.

Critical Engineering Considerations for Custom Integration

When designing a SOAR custom vehicle wiring harness, three primary technical factors determine the success of the integration:

1. Material Selection and Environmental Sealing

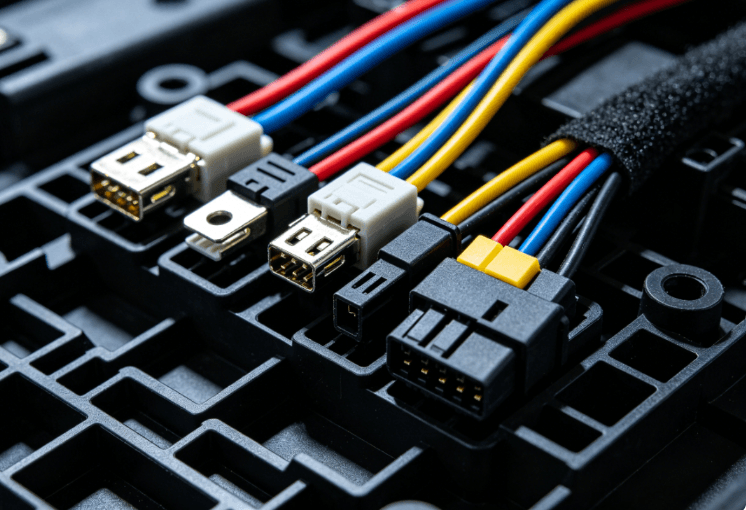

The choice of jacketing material is governed by the ISO 6722 standard. For under-the-hood applications, harnesses must withstand temperatures up to 125°C or even 150°C. In commercial logistics, resistance to diesel fuel and battery acid is mandatory. Utilizing high-quality connectors (such as Deutsch or TE Connectivity standards) ensures that the entry points for moisture are effectively sealed, preventing terminal corrosion.

2. Signal Integrity and EMI Shielding

As vehicles become more autonomous, the complexity of automotive wiring harness systems increases, and so does the risk of Electromagnetic Interference (EMI). Custom harnesses for passenger EVs require sophisticated shielding for high-speed data lines. SOAR’s manufacturing process incorporates twisted-pair wiring and braided shielding to ensure that safety-critical data from LiDAR and camera systems remain uncorrupted by the high-voltage noise of the powertrain.

3. Complexity Management and Modularity

Modern commercial fleet vehicles often require modular automotive wiring harness designs. This allows for easier maintenance and the addition of aftermarket telematics or refrigeration units. A well-designed custom harness reduces "wire nest" complexity, utilizing sub-assemblies that click together, which significantly lowers assembly line time for OEMs.

Evaluating Manufacturing Standards and Quality Control

A wiring harness is only as reliable as its weakest crimp. In the automotive industry, adherence to IATF 16949 and IPC/WHMA-A-620 standards is the benchmark for quality.

When evaluating SOAR custom vehicle wiring harness solutions, project managers should look for:

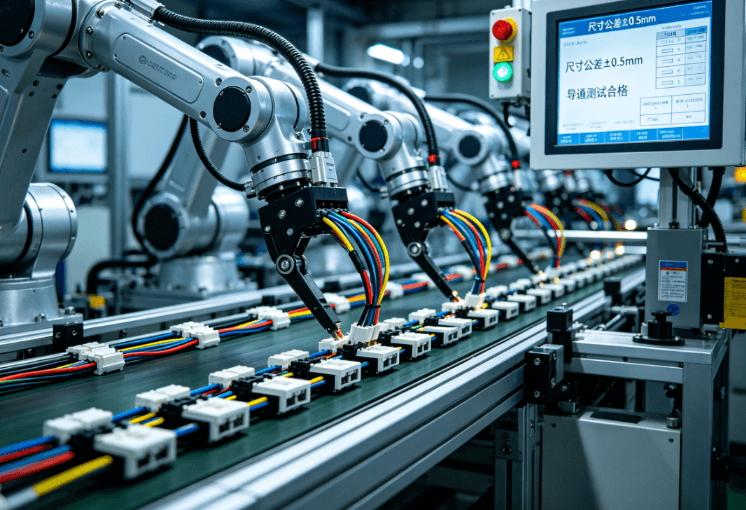

• Automated Crimping & Pull-Force Testing: Ensures every terminal can withstand the mechanical rigors of the road.
• Electrical Continuity Testing: 100% testing of all circuits to prevent "open" or "short" conditions before the harness reaches the assembly plant.
• Custom Tooling Capabilities: The ability to create specialized grommets and brackets that match the unique geometry of a new vehicle frame.

By leveraging the capabilities found on SOAR’s automotive harness platform, manufacturers can access high-precision customization that aligns with these rigorous global standards.

Cost Drivers in Custom Harness Production

For procurement teams, understanding what influences the price of a SOAR custom vehicle wiring harness is essential for budget accuracy.

1. Copper Weight: Copper is the primary cost driver. Optimizing wire gauge—using the thinnest possible wire that can safely carry the load—is the most effective way to manage costs without sacrificing performance.
2. Connector Selection: Using proprietary connectors can drive up costs and lead times. Engineers often recommend standardized automotive-grade connectors where possible.
3. Labor Intensity: While automation is used for cutting and stripping, the "forming" of a harness on a nail board is still largely manual. The more complex the branch-outs, the higher the labor cost.

FAQ

Q: What is the typical lead time for a SOAR custom vehicle wiring harness prototype?


A: Depending on the availability of specialized connectors and the complexity of the circuit design, prototypes typically range from 2 to 4 weeks. Full production runs vary based on volume and raw material sourcing.

Q: Can these harnesses support high-voltage EV applications?


A: Yes. Custom harnesses can be engineered with specific insulation and orange-coded jacketing required for high-voltage (HV) systems in electric passenger cars and commercial e-trucks, ensuring compliance with safety standards.

Q: How do you ensure the harness will fit perfectly in a compact engine bay?


A: We work with OEM engineers using 3D CAD modeling. By defining the exact routing paths and branch points during the design phase, the harness is manufactured to the precise dimensions of the vehicle chassis.

Q: Are SOAR harnesses compliant with international automotive standards?


A: Our manufacturing processes are aligned with IATF 16949 and ISO standards, ensuring that materials and assembly techniques meet the rigorous safety and quality requirements of the global automotive industry.

Reference Sources

1. ISO 6722-1: Road vehicles — 60 V and 600 V single-core cables — Dimensions, test methods and requirements. ISO.org
2. IPC/WHMA-A-620: Requirements and Acceptance for Cable and Wire Harness Assemblies. IPC.org
3. SAE International: J1939 Standards Collection for Vehicle Networks (Commercial Vehicle focus). SAE.org
4. IATF 16949: Quality management system standard for organizations in the automotive industry. IATF Global Oversight
